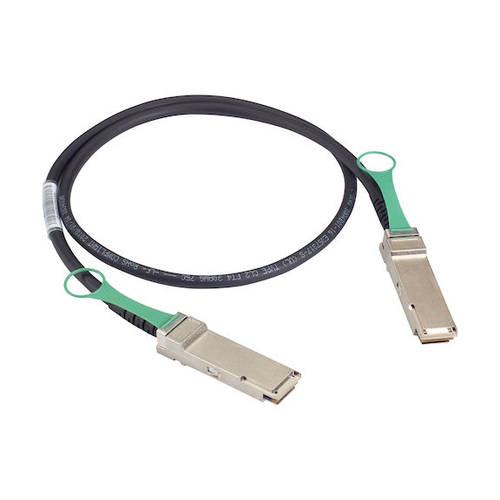

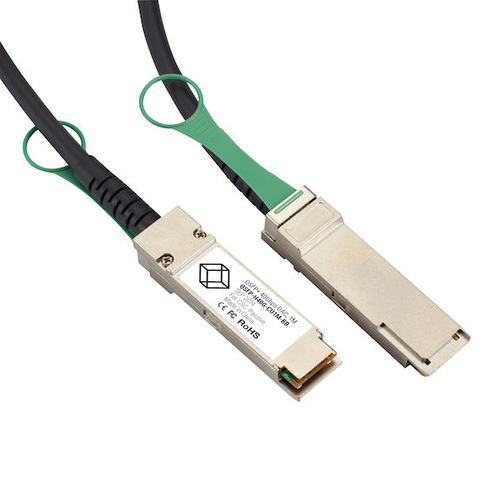

Cisco-compatible Direct Attach Cable (DAC) connects network equipment at speeds up to 40 Gbps
Black Box QSFP+ Direct Attach Cables provide premium, error-free performance for data, storage and high-performance computing (HPC) interconnectivity. They are 100% compatible with Cisco QSFP-H40G-CUxM=, allowing you to easily make connections amongst your Cisco switches, routers and servers. Constructed for full compliance with the Multi-Source Agreement (MSA) and SFF-8436 industry standards, you can also make connections amongst your non-Cisco, 40-Gbps compatible networking equipment. Programmed, tested and serialized to ensure compliance and functionality, Black Box Direct Attach Cables are the ideal solution for 40-Gbps Ethernet, fiber channel applications and more.
Low-cost, low-power solution ideal for in-rack high-density, high-bandwidth applications
When it comes to connecting networking equipment in high-density, high-bandwidth applications, Direct Attach Cables that operate over passive copper are the most cost-effective solution available. They are perfect for inter-rack connections of switches, routers and servers. Further, DACs consume practically zero power, making them a much more efficient and economical connectivity solution than Active Optical Cables (AOC) and modular transceivers.
All-in-one solution for simple connections with low latency
With an all-in-one, hot-swappable cable design, Direct Attach Cables provide you with an easy-to-connect solution that does not require you to purchase multiple transceivers and cabling. The lack of additional connection points also means lower latency, so you can be confident of your data integrity. Hot-swap ability makes upgrades and equipment replacements a breeze, minimizing downtime to your network connectivity.
Standards —
QSFP+ MSA, SFF-8436,
802.3ba 40GBASE-CR4
Connectors — QSFP+ male
Pin assignment — see data sheet
Cable Jacket Type — CL2 rated PVC jacketing
Cable Impedance — 100 ± 10 ohms
Cable Gauge — 30 AWG (up to 3 m)/24 AWG (up to 5 m)
Color — Black
Bend Radius min— 33mm at 30AWG
Data Transfer Rate — 40 Gbps
Next (Near End Cross Talk) — <26 dB @ 5 GHz
Temperature —
Operating: -20 to 70° C
Power Consumption — 0.003 W
Approvals — RoHS, CE, FCC
Hardware Compatibility—
Cisco,
Netgear,
Broadcom,
Chelsio,
Cumulus IOS based switches,
D-Link,
Linksys,
Mikrotik,
Edgecore,
Pica8,
QNAP,
Supermicro,
TP-Link,
Ubiquiti,
ZTE
Open switches
