ACU5700A: Extender Kit, (1) Single link DVI-D, USB, audio, serial, 150m, CATx

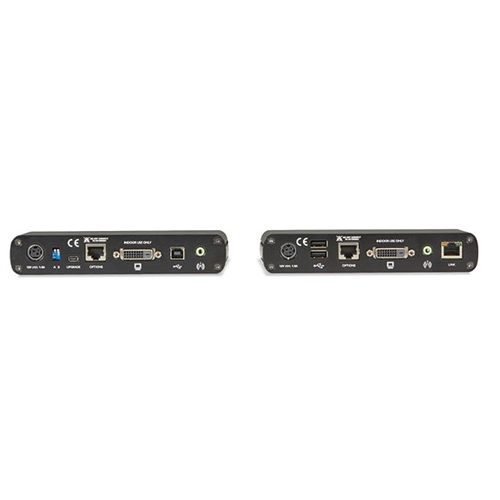

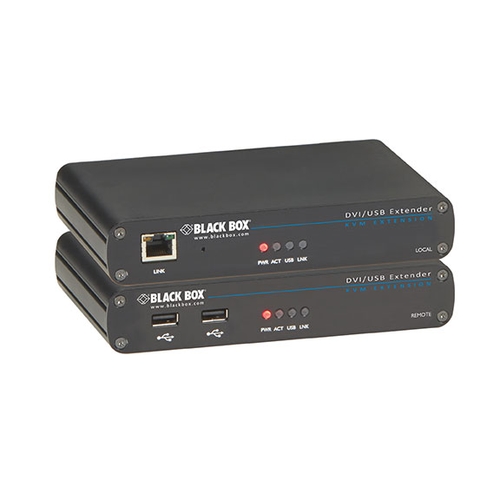

Photo may vary from actual product
LRX KVM Extender - DVI, USB 2.0, serial, audio


LRX KVM Extender - DVI, USB 2.0, serial, audio


Long-distance extender transmits DVI-D, USB, serial, and audio over a single CATx cable up to 150m.


  • Extension distance is 150 m to a single-screen; maximum resolution is 1920 x 1080.
  • Supports USB 2.0 for keyboard and mouse, as well as for storage devices, touch screen, and web cameras.
  • Transmits pixel-perfect digital video with no compression and enables real-time control of USB devices.
  • Higher resolution (1920 x 1200) is possible over a shorter cable (100 m).
  • Includes intelligent EDID management.
  • Includes a 4-port USB hub on the receiver, which enables several USB devices to be connected.
  • Fully compatible with the Wizard DVi USB KVM Switch (KV2004A) to control up to 4 computers remotely.
  • Warranty: 2 Year Double Diamond™ Warranty (Standard)

  Product       Code   Unit price
Extender Kit
(1) Single link DVI-D
USB, audio, serial
150m

CATx
  LRX KVM Extender - DVI, USB 2.0, serial, audio
LRX KVM Extender - DVI, USB 2.0, serial, audio
  ACU5700A   Sign in to view prices

Accessories

  Product     Code   Unit price

  Central Power Hub - 8 ports
Central Power Hub
  ACR1000-CPH8R-R2   Sign in to view prices
  Central Power Hub - 16 port
Central Power Hub
  ACR1000-CPH16R-R2   Sign in to view prices
Power Supply
  Spare/Redundant Power Supply 100-240VAC/0.7A; 12VDC/1.5A
Spare/Redundant Power Supply 100-240VAC/0.7A; 12VDC/1.5A
  PS656   Sign in to view prices
Rack/Mount Kit
  19"-Rackmount Kit for 2x DCX-Receivers or Extender units
19"-Rackmount Kit for 2x DCX-Receivers or Extender units
  DCX3000-DVR-RMK   Sign in to view prices



Actions
Manuals
LRX KVM Extender - DVI, USB 2.0, serial, audio Manual
